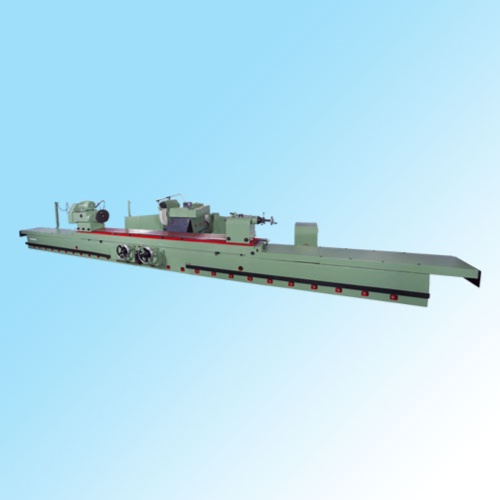

Heavy Duty Plain Roll Grinde

Heavy Duty Plain Roll Grinde

Product Description

Product Name:
Heavy Duty Plain Roll Grinde
Country of Origin:
Taiwan
Model:
HR-800/3000, 3500, 4000

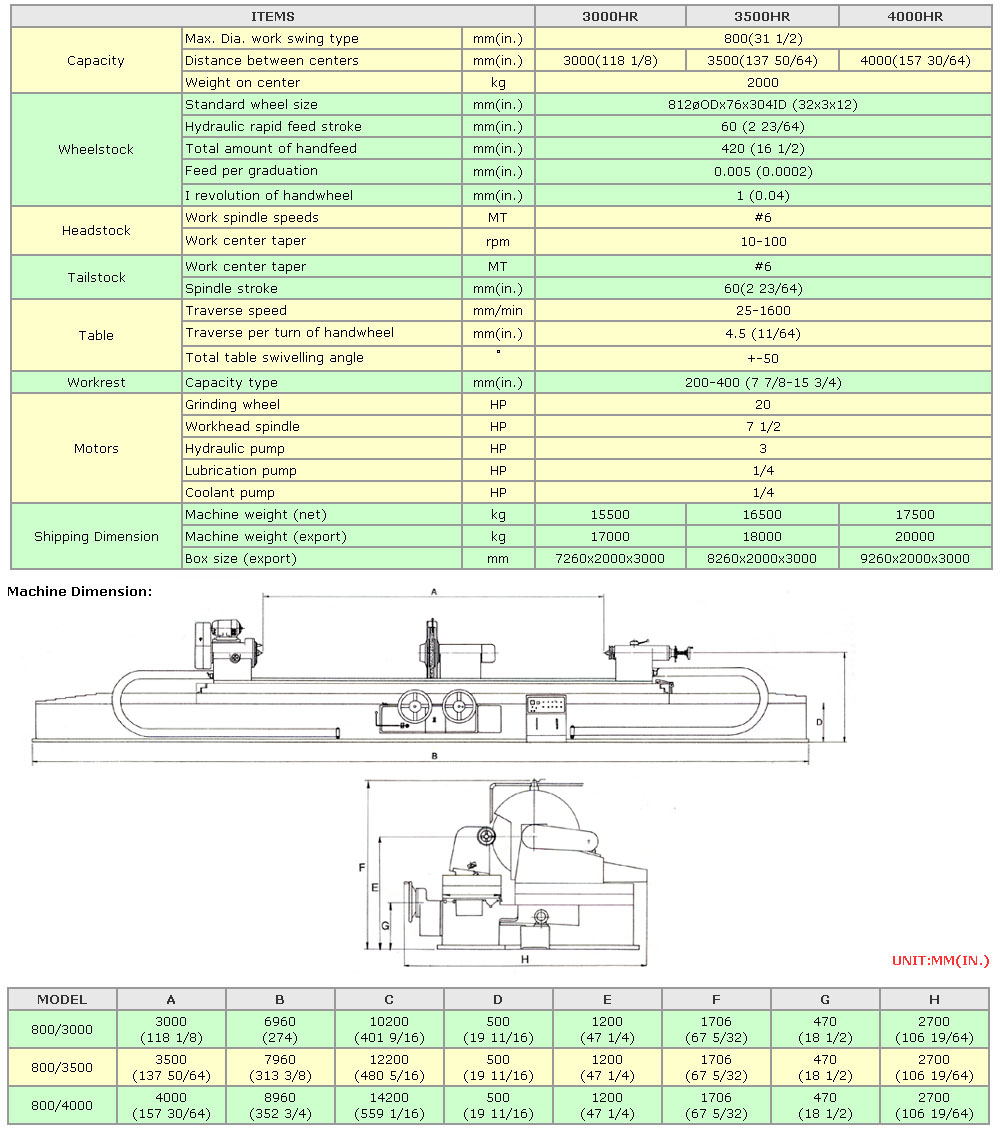

Detail Specifications

* Suitable for grinding plain-faced rolls, large mechanical columns, car axles, printing cylinders, and large motor armatures.
* Heavy-duty bed is sturdy and rigid.
* Oblique worktable-top naturally enables the work-head and tailstock to adhere to calibrated side for consistent core accuracy.
* Grinding wheel is electrically controlled for speedy moving of cutter.
* Grinding spindle is force-lubricated and has electric interlock for safety.
Main axle is DC-motor driven for seamless transmission.
* Swivel table has an indicator for convenient, precise angle setting.
* Work-head and tailstock feature air-bearing design for easy movement.
* Work carriage has telescopic guards for dust and moisture protection.

Standard attachments:
* Face and side wheel-dressing attachment
* Grinding-wheel flange
* Wheel balancing arbor
* Wheel flange remover
* Cemented-carbide center
* Leveling screws and plates
* Splash guard
* Wheel dressing tool
* Cold grinding wheel
* Touch-up paint
* Swivel-angle-gauge
* Standard tools and toolbox

Special accessories:
* Work rest (2-point steady rest)
* Grinding wheel balancer
* Magnetic coolant filter
* Extra grinding wheel
* Extra wheel flange
* 3-Jaw self-centering chuck with back plate
